Relay protection systems are the cornerstone of reliable and safe power grids. As renewable energy sources and smart grids evolve, so do the challenges these systems must address, variability in generation, harmonic distortions, and the growing complexity of interconnected networks.
Spiraling Impedance in Distance Relays - Behavior During Faults
Distance relays are indispensable in power system protection, detecting and isolating faults on transmission lines.

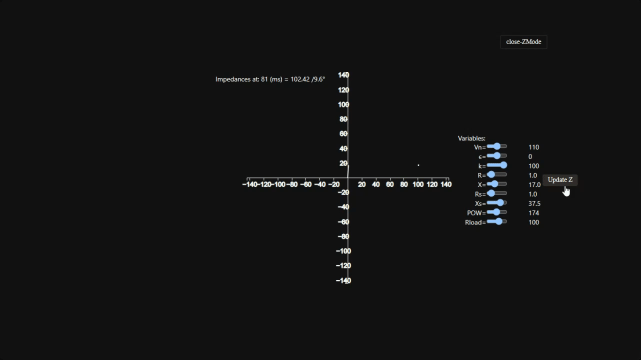

A noteworthy phenomenon during fault conditions is the spiraling behavior of impedance, observed on the complex plane due to the transient system response.
Interactive Distance Relay Protection Tool - Features & Demonstration

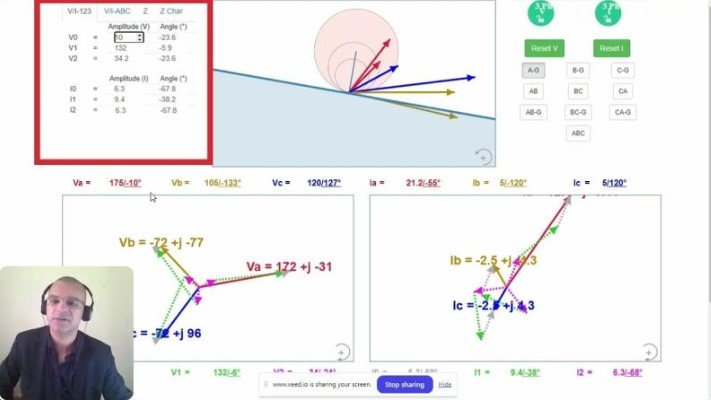

Understanding distance relay protection can be complex, but with the right tools, it becomes an intuitive and interactive process. In this blog post, I explore a newly developed tool that simplifies the analysis of distance relay protection concepts, helping engineers and students grasp the fundamentals and perform real-time calculations.
Overcurrent Relay Operating Time Testing - A Practical Tool for Engineers and the Field

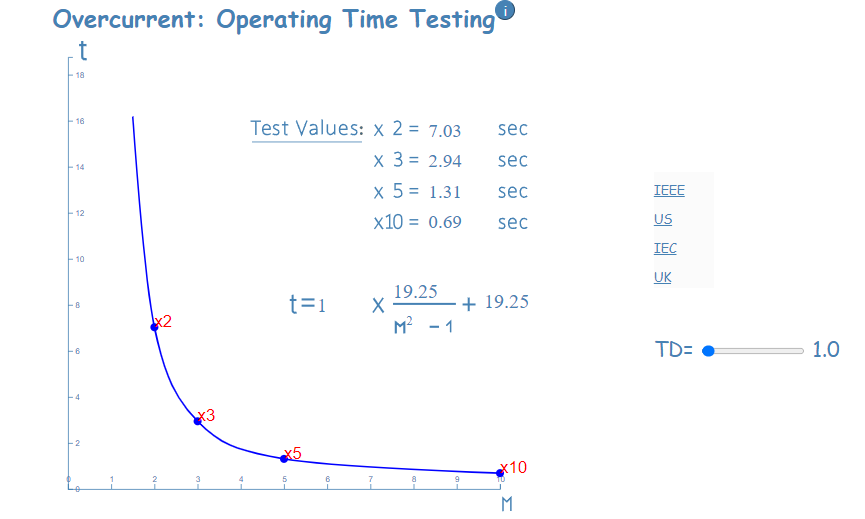

Relay protection testing is essential to maintaining the reliability and safety of power systems. Properly coordinated relays ensure that faults are cleared efficiently without unnecessary disruptions. Today, I’m introducing a tool I developed to make overcurrent relay testing simpler and more effective.
Unlocking Fortescue's Principle - Master Symmetrical Components in Electrical Engineering
Unlock the secrets of Fortescue’s Principle—the foundation of symmetrical components analysis in electrical engineering. This technique enables the decomposition of unbalanced three-phase systems into balanced sets: positive sequence, negative sequence, and zero sequence, making it indispensable for fault analysis, system design, and more.
Discover my Latest Oscillography Tool Enhancements

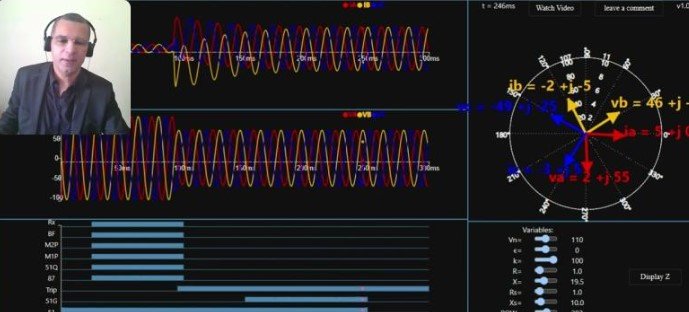

Video content is a powerful way to communicate complex ideas, and I’m thrilled to announce my first foray into this medium!
Understanding Positive Sequence, Negative Sequence, and Zero Sequence
Symmetrical components in power systems (positive, negative, and zero sequences) are indispensable tools for power system engineers dealing with unbalanced conditions in three-phase systems. This method, first introduced by Charles Fortescue, simplifies complex scenarios, enabling easier fault analysis and the design of effective protective systems.

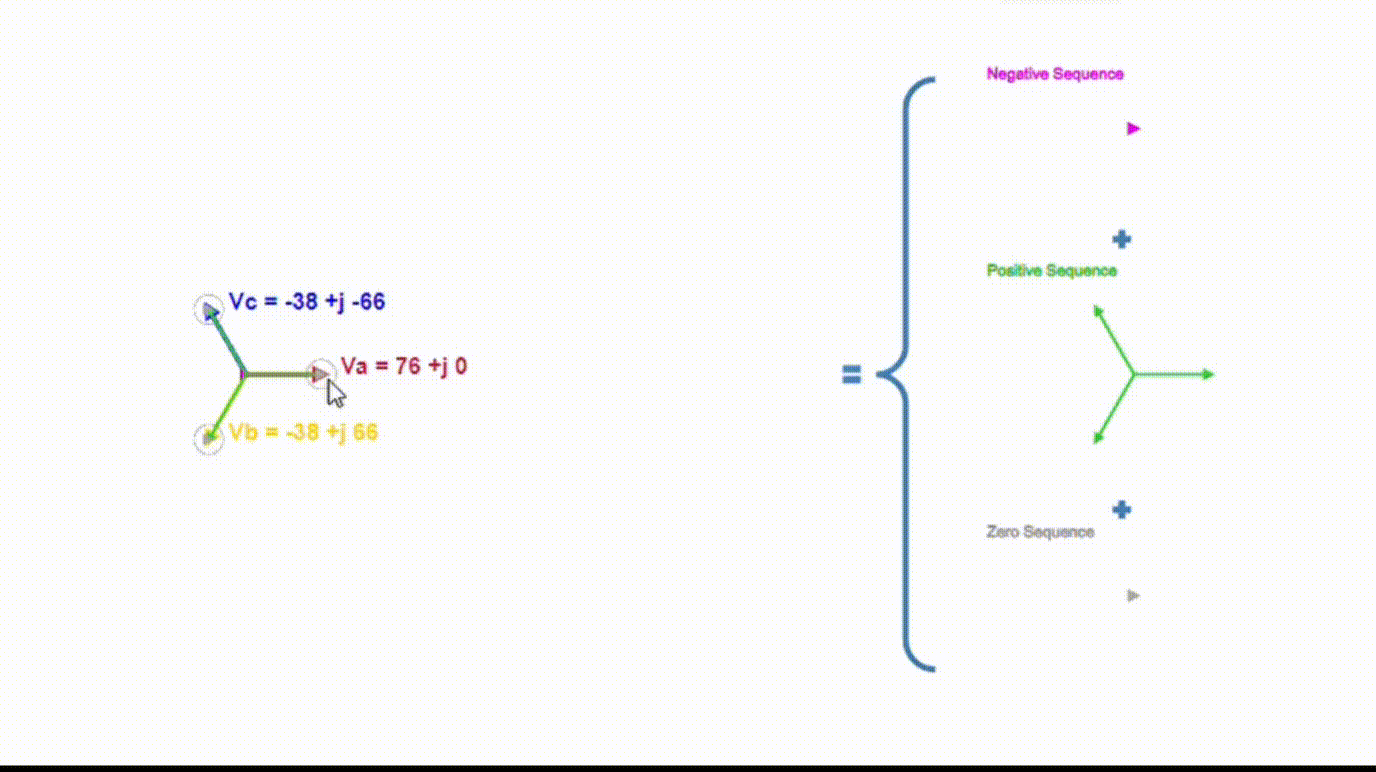

You can access the animation tool here
Inside Medium Voltage Panels A 3D Exploration
Ever wondered what goes on behind medium voltage panels? Gaurav J, also known as TheElectricalGuy, offers an in-depth 3D tour that’s perfect for anyone involved in relay protection engineering.
