With the rise of renewable energy and its impact on grid dynamics, choosing the right line protection scheme has become more critical than ever. Line differential protection (87L) and distance protection (21) both have their roles, but in this blog, we argue why line differential protection should be prioritized whenever possible.
We’ll also cover scenarios where distance protection remains relevant, such as when managing charging current for long cables or when communication infrastructure is limited.
Key Differences Between Line Differential vs. Distance Protection Relays
Line Differential Protection (87L):
- Operates by comparing current entering and leaving a line segment based on Kirchhoff’s Current Law.
- Immune to variations in line impedance or source impedance.
- Requires reliable high-speed communication between terminals for synchronization.
Distance Protection (21):
- Measures fault impedance based on voltage and current phasors to calculate fault location.
- Divides lines into multiple protection zones, simplifying initial setup.
- Does not depend on communication but is affected by system impedance variations.
Why Choose Line Differential Protection for Critical Lines?
Line differential protection provides unmatched sensitivity and adaptability, making it ideal for:
- Critical Lines: Offers fast, selective fault clearance to minimize disruption.
- Mixed Overhead and Underground Lines: Easily handles impedance variations between different segments.
- Weak Systems: Remains effective in renewable-heavy grids with low short-circuit levels.
- Flexibility in Grid Reconfigurations: Adapts to changing line configurations as long as communication channels are maintained.
When is Distance Protection the Right Choice?
Distance protection continues to serve an important role in scenarios such as:
- Cost Constraints: Does not require terminal-to-terminal communication, making it more economical.
- Communication Limitations: Ideal for systems lacking high-speed communication infrastructure.
- Backup Protection: Provides overlapping protection zones for adjacent systems, ensuring redundancy.
Why Line Differential Protection Excels in Renewable-Heavy Grids
The Renewable Energy Challenge
The rise of solar and wind farms introduces unique challenges to grid protection:
- Dynamic Impedance Variations: Renewable generation often connects via inverters, creating unpredictable and fluctuating line impedances.
- Frequent System Reconfigurations: Renewable energy integration leads to islanding and reconnections, complicating protection schemes.
- Weak Grid Conditions: Low fault currents in renewable-dominated grids make impedance-based schemes like distance protection less reliable.
Line Differential Protection is Immune
Line differential protection overcomes these challenges because:
- Current-Based Detection: It compares the current entering and exiting the line, making it agnostic to impedance changes or renewable variability.
- Resilience to Fault Current Magnitudes: Unlike distance protection, differential protection is unaffected by reduced fault currents in weak grids.
- Adaptable to Changing Topologies: As long as communication is maintained, it can protect lines regardless of reconfigurations or renewables integration.
Charging Current Compensation: A Key Consideration for Long Cables
One caveat with line differential protection is the challenge posed by charging currents in long cables. These capacitive currents can mimic fault conditions, leading to false trips.
Modern Solutions for Charging Current Compensation:

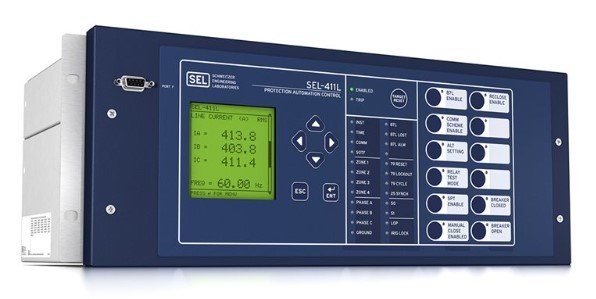

- Advanced differential relays (e.g., SEL-411L and SIPROTEC 7SD5 ) accurately model and subtract charging currents from measurements, eliminating false positives.
- For distance protection, charging current is less problematic due to its impedance-based detection, but careful zone configuration is still necessary.
Final Thoughts: Why Line Differential Protection is the Future
Given the growing penetration of renewable energy and the complexity it adds to grid dynamics, line differential protection emerges as the most future-proof solution for line protection. Its immunity to dynamic impedance variations, adaptability to grid reconfigurations, and resilience in weak systems make it the ideal choice for modern grids.
Key Takeaways:
Choose Line Differential Protection When:
- Protecting renewable-heavy grids with fluctuating impedances.
- Managing mixed overhead and underground lines.
- Speed, selectivity, and reliability are critical.
Choose Distance Protection When:
- Communication infrastructure is unavailable.
- Cost-effective or backup protection is needed.
- The system does not face renewable-driven variability.
By prioritizing line differential protection wherever possible, you future-proof your protection schemes against the challenges introduced by renewable energy. Distance protection, while valuable, should increasingly be reserved for systems with limited infrastructure or budget constraints.
